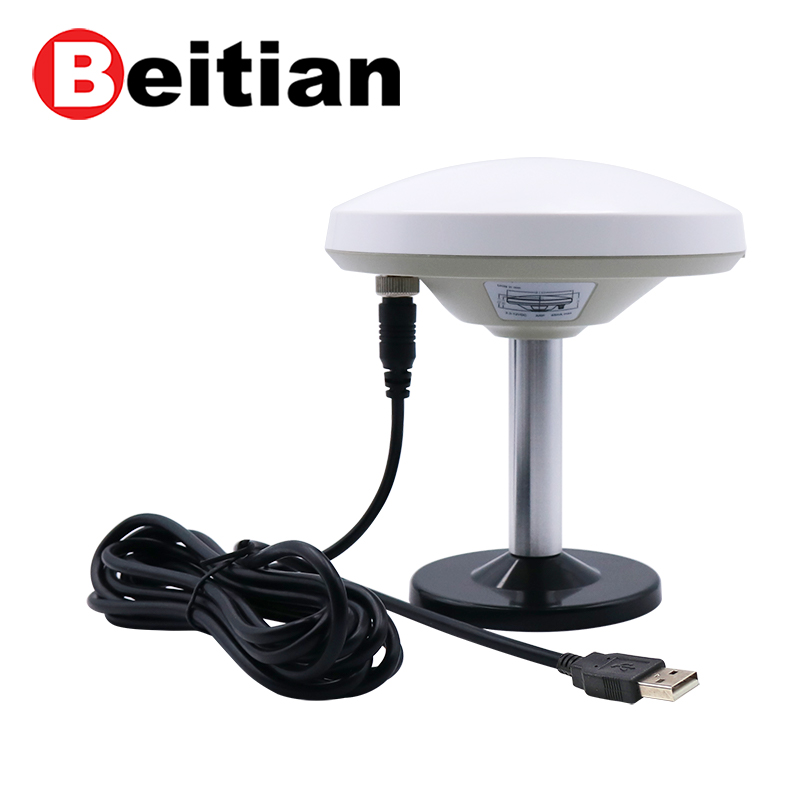

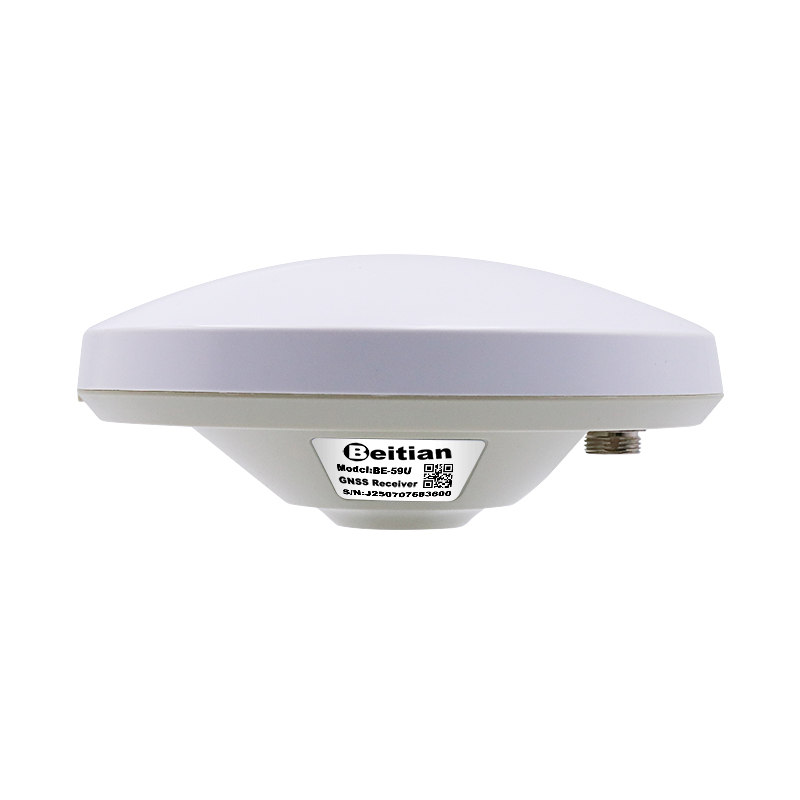

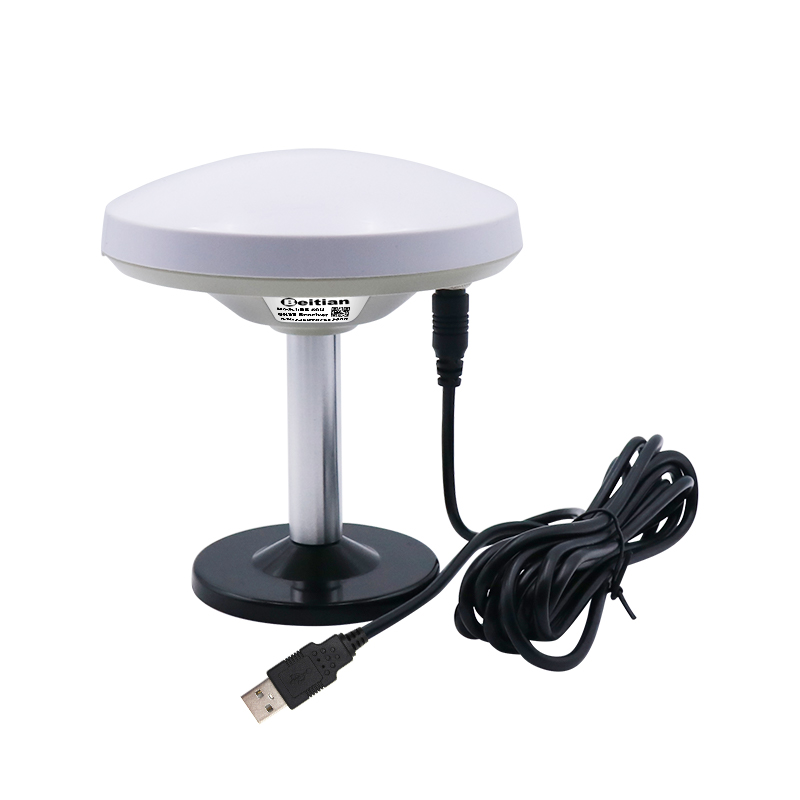

GNSS Receiver BE-59U

Shenzhen Beitian Communication Co., Ltd. was established in 2013. The company is an original manufacturer of Beidou positioning GPS modules and GPS antennas, integrating research and development, production, and sales. The company is located in Guangdong, with offices and production sites in Shenzhen and Dongguan, covering an area of approximately 6000 square meters. Products include: GPS antenna, GNSS antenna, RTK antenna, Beisan RDSS antenna, GPS module, GNSS module, board, GNSS receiver, Beidou module.

Code：	BE-59U
Product：	GNSS Receiver
Size：	Φ140mm*150.5mm
Brand：	Beitian
Model：	BE-59U

Buy Contact Now

产品详情

Item	Description
Electrical Characteristic	Chip	M10050
	Receiver type	GPS L1 C/A, QZSS L1 C/A/S,BDS B1I/B1C, Galileo E1B/C,SBAS L1 C/A: WAAS, EGNOS, MSAS, GAGAN
	Default position system	GPS, BDS, GALILEO
	Augmentation system	SBAS, QZSS
	Channel	N/A
Sensitivity	Tracking & Navigation	-166dBm
	Reacquisition	-160dBm
	Cold start	-148dBm
	Hot Start	-160dBm
Accuracy	Horizontal position	2.0m CEP
	Velocity	0.05m/s
	Dynamic heading	0.3 deg
	Time pulse	RMS 30ns
		99% 60ns
Acquisition	Cold start	27s
	Hot start	1s
	Aided start	1s
Data Output	Baud rate	4800bps - 921600bps, default 115200bps
	Level	PL2303SA chip TTL to USB driver, USB level
	Protocol	NMEA,UBX
	NMEA messages	RMC,VTG,GGA,GSA,GSV,GLL
	Update rate	0.25Hz-18Hz,default 1Hz
	FLASH	With FLASH, the configuration can be changed, and the power will not be lost
	Frequency of time pulse signal	Configurable from 0.25 Hz to 10 MHz, the default period is 1s, and the high level lasts for 100ms
Operational Limits	Altitude	80,000m
	Velocity	500m/s
	Dynamics	<4g
Power Consumption	Voltage	DC 3.6V-5.5V, typical: 5.0V
	Current	30mA/5.0V
Mechanical Specifications	Dimension	Φ140mm*150.5mm
	Weight	<1500g
	Connector	USB
	Cable Length	2m
	Fixed	Magnetic bottom
Temperature	Operating	-40 °C ~ +85°C
	Storage	-40°C ~ +105°C
